RUNNER LINK Gateway Upload/Download Program (Virtual Keypad)

Initiating Communication with the Unit

1. Using the Unit IP Address without Not authorized PC option

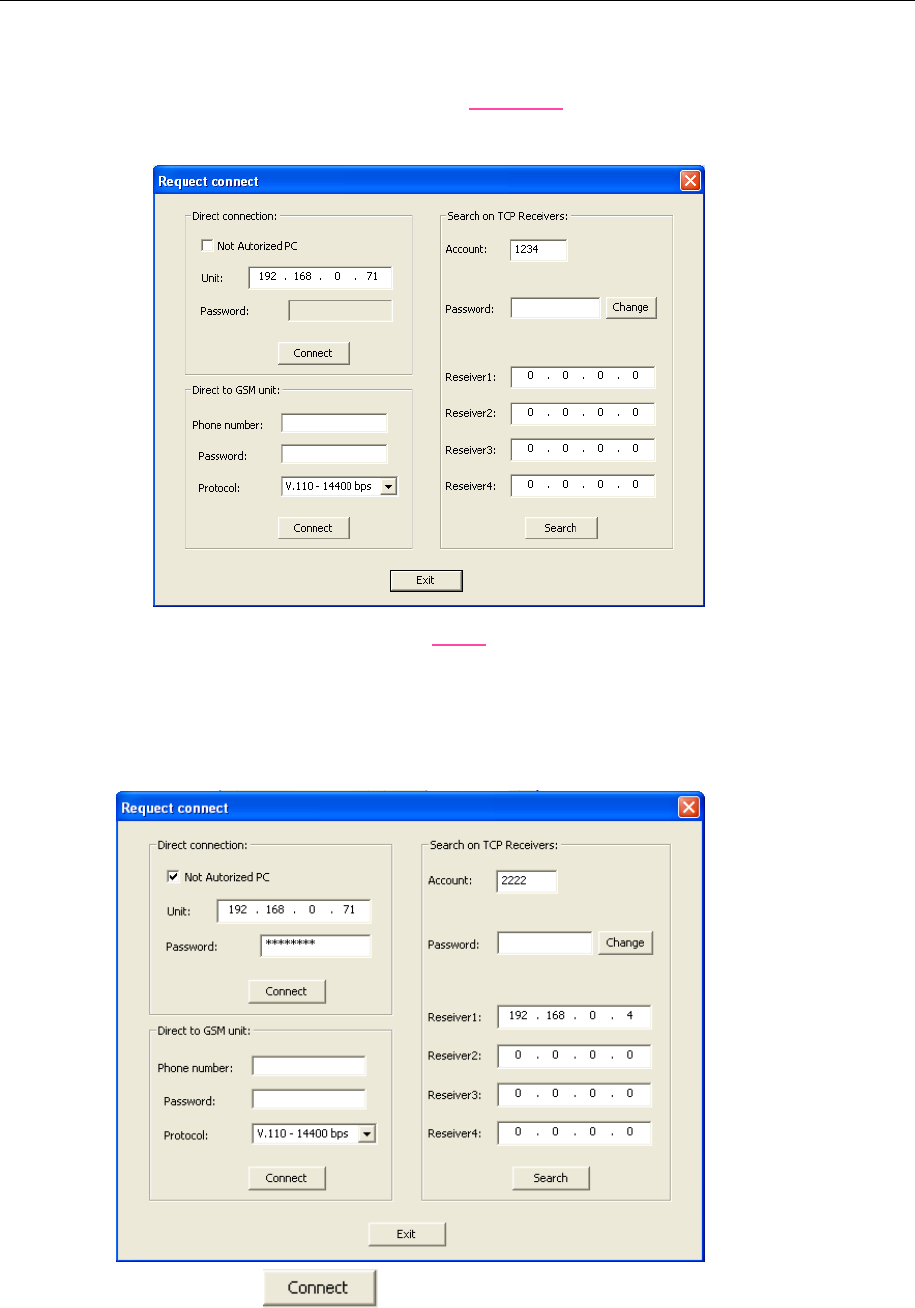

1.1 In the Direct connection pane, enter the unit IP, (pc's IP address should

be 192.168.0.5)

Using the Unit IP Address with Not authorized PC option

1.2 In the Direct connection pane, enter the unit IP, check the box of Not

authorized PC, insert the password which defined in Direct connect

pane

(Defined password See page 11, section 6) (Note: with this option pc's IP

address can be any IP address)

1.3

Click the

button.

1.4 ONLY if the connection to the Alarm System is successfully established

the following screen displayed.
