RUNNER LINK Gateway Installing the Unit

Connecting Cables

1. Connect one end of the bus cable to the bus on the control panel main

board.

You can also use the bus terminal block to connect the bus using discrete

wires, see Figure 4 on page 7.

Install the cable

in any free Bus

socket

Bus Terminal Block

Top Terminal is Not

Used (LIN)

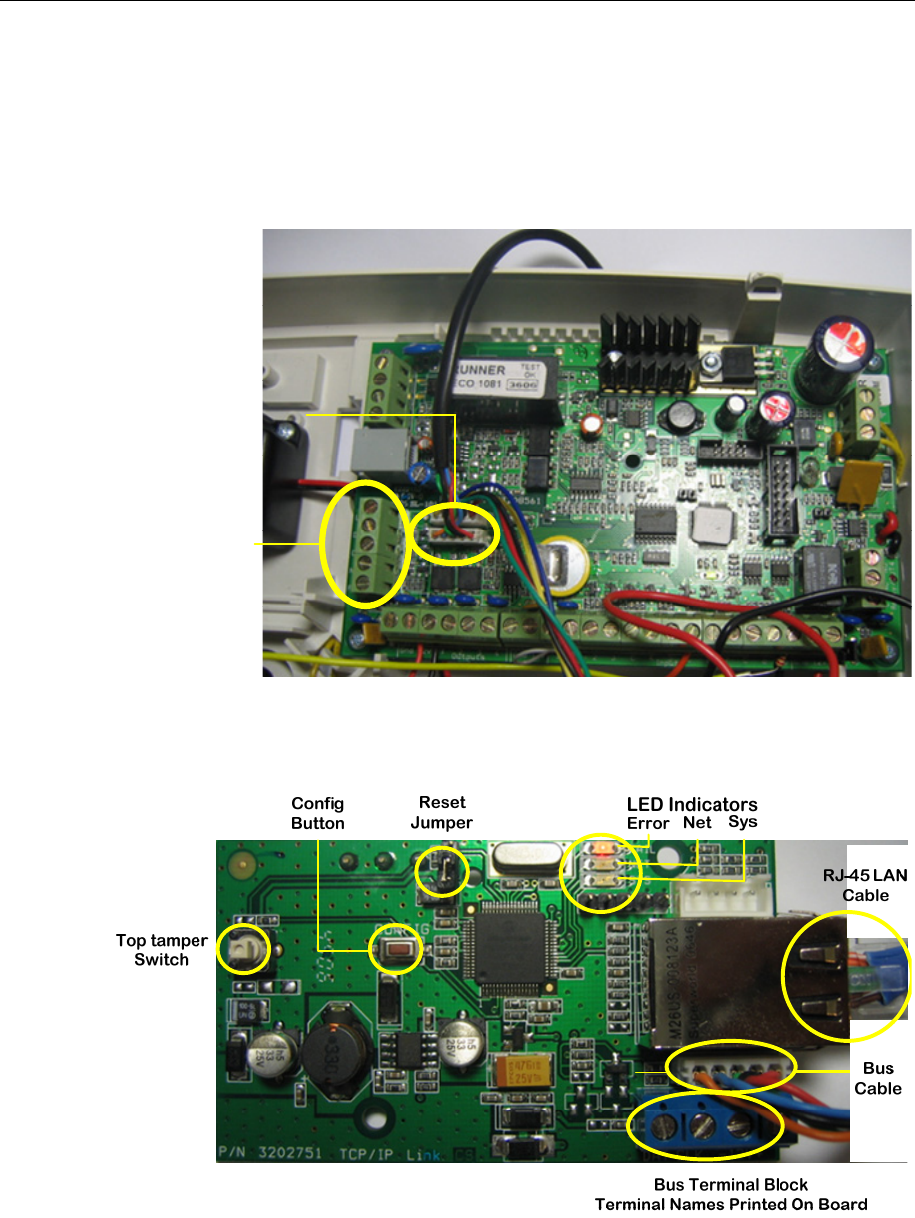

Figure 2 Main Board Bus Connection

2. Connect the RJ-45 LAN cable to the Runner Link board as shown in Figure

2 and Figure 3.

Figure 3 Runner Link Board Connections and Locations
